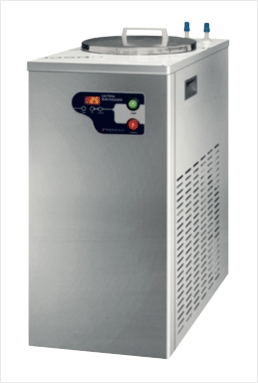

• FEATURE As a source of cooling water to the Rotary Evaporator and as a heat-emitting equipment it supplies sufficient quantity of cooling water as highly efficient chemical pumps are installed and does not contaminate other instruments as it does not get corroded.
• SPECIFICATION(HS-3005) |
|
Capacity |
15ℓ |
Bath Dimension (D×H) |
φ280×270 |
Circulator Pump |
Magnet 20W Max. flow 4.5ℓ/min |
Temp.Range |
Down to~ -20°C |
Controller |
FND Controller |
Refrigerator |
3/4HP |
Refrigerant |
134A |
Dimension (W×D×H) |
330×560×670mm |
Gross weight |
40㎏ |
Power consumption |
750W |
Power Supply |
AC 230V 50/60Hz | |
|
• SPECIFICATION(HS-3005W) |
Capacity |
24ℓ |
Bath Dimension (D×H) |
φ350×250 |
Circulator Pump |
Magnet 40W Max. flow 15ℓ/min |
Temp.Range |
Down to~ -20°C |
Controller |
FND Controller |
Refrigerator |
2HP |
Refrigerant |
R404 |
Dimension (W×D×H) |
630×680×900mm |
Gross weight |
110㎏ |
Power consumption |
2000W |
Power Supply |
AC 230V 50/60Hz | |
